Narrow-body Aircraft Maintenance Dock（Dock Instance）

Narrow-body Aircraft Maintenance Dock is used for maintenance of B737 series and A320 series, which meets the requirements of C/D inspection and spray painting of aircraft.

Nose Dock

Nose Dock

Nose Dock

Nose Dock consists of the main platform，windshield platform, radome platform and the second floor, which meets the C/D inspection and spray painting of aircraft requirements of windshield, radome, front passenger door and top of nose.
Wing Dock

Wing Dock

Wing Dock

Wing Dock consists of its outboard platform, inner platform, wingtip platform,the inner engine platform, and landing gear platform，which meets the C/D inspection and spray painting of aircraft.requirements of wings.
Fuselage Dock

Fuselage Dock

Fuselage Dock

Wing Dock consists of the main platform,work area covered by main work platform based on different aircraft models,which meets the C/D inspection and spray painting of aircraft requirements of front, rear fuselage section and the fuselage of upper wing.
Tail Dock

Tail Dock

Tail Dock

Tail Dock consists of vertical fin platform ,horizontal tail platform and APU platform,which meets the C/D inspection and spray painting of aircraft requirements of rear passenger door, vertical fin ,horizontal tail and APU.

Wing Dock（Product introduction）

  • Composed of main working platform and wing tip platform, the working area includes the outer and small wings.

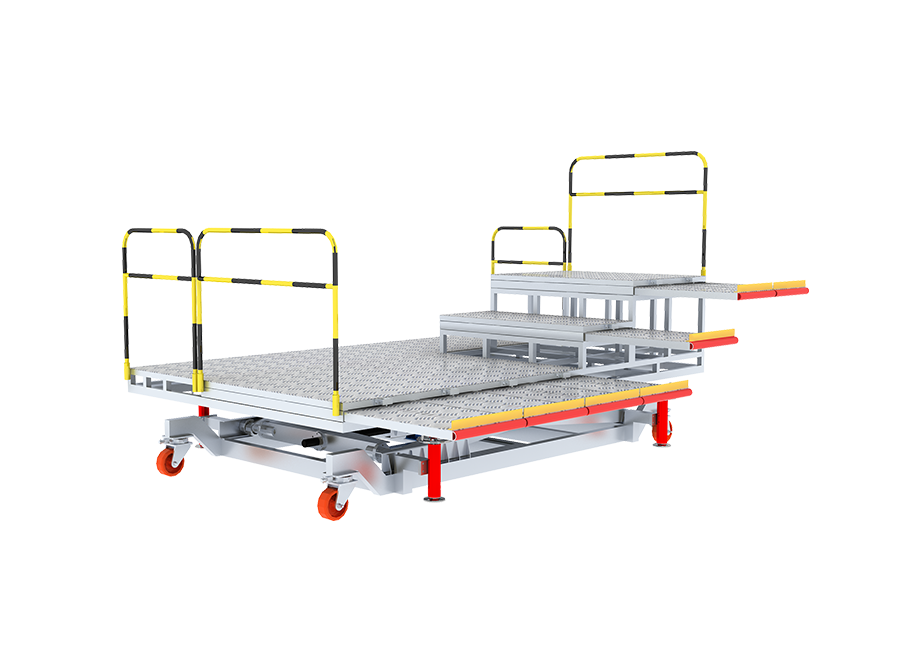

    Large wing outside platform (including wing tip platform)

  • The working area consists of the working platform, which includes the outer part of the engine to the middle of the main wing.

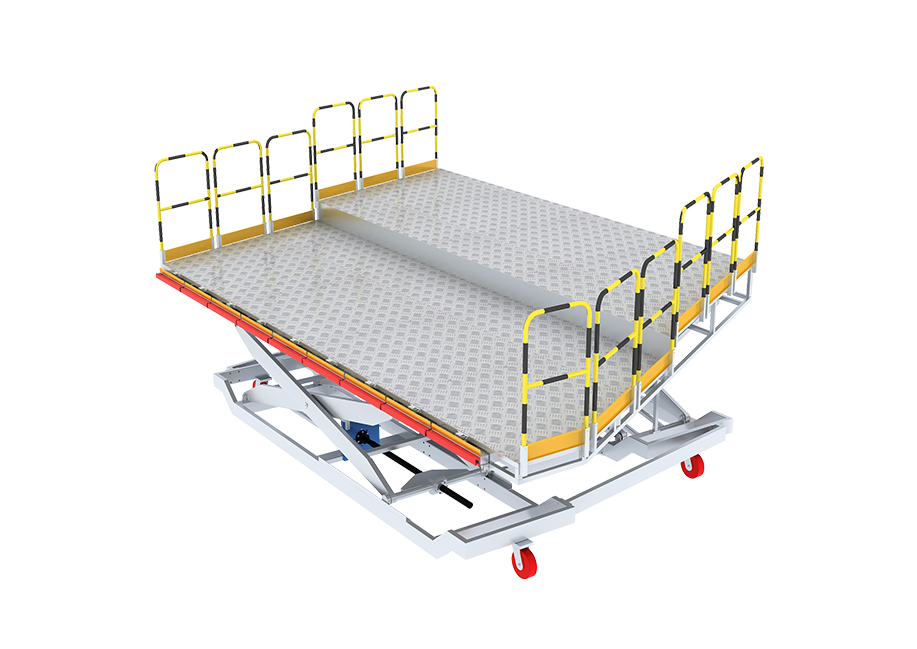

    The inner platform of the large wing.

  • Made up of the work platform, the working area contains the inside of the engine to the fuselage.

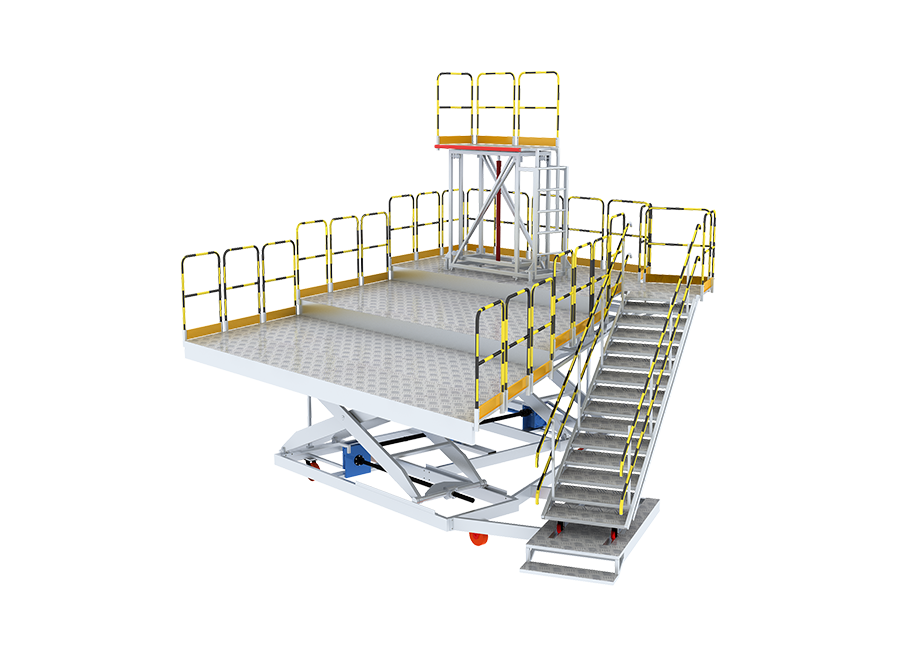

    Engine inside platform.

  • The working area consists of a working platform and an abdominal platform. The working area includes the landing gear to the belly of the machine, the great tiller, the tail of the engine and the landing gear.

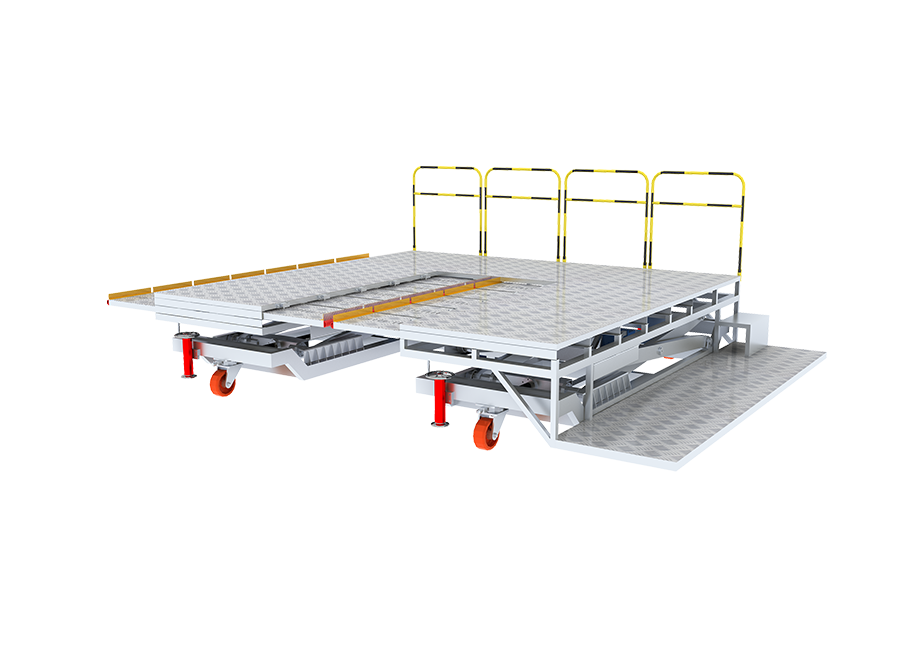

    Landing gear platform
